This model has adopted an air spring mechanism. The brushless motor accelerates the compression of the air spring, allowing nails up to 90mm to be driven with a sense similar to that of a pneumatic nailer.
Specification
Figure of nail head: Clipped
Nail Length: 50 – 90 mm
Nail Diameter: 2,9 – 3,3 mm
Fastener Magazine Capacity: 51 – 58
Nominal Battery Voltage: 18 V
Sound Power Level (LWA): 101 dB(A)
Sound Pressure Level (LpA): 90 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level (3 axes): 3,4 m/s²
Vibration Uncertainty (K Factor): 1,5 m/s²
Tool weight with battery: 4,9 – 5,4 kg
Product Dimensions (L x W x H): 326 x 186 x 358 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
Magazine Angle: 30 – 34 º
Product net weight: 4,6 kg
Standard Equipment

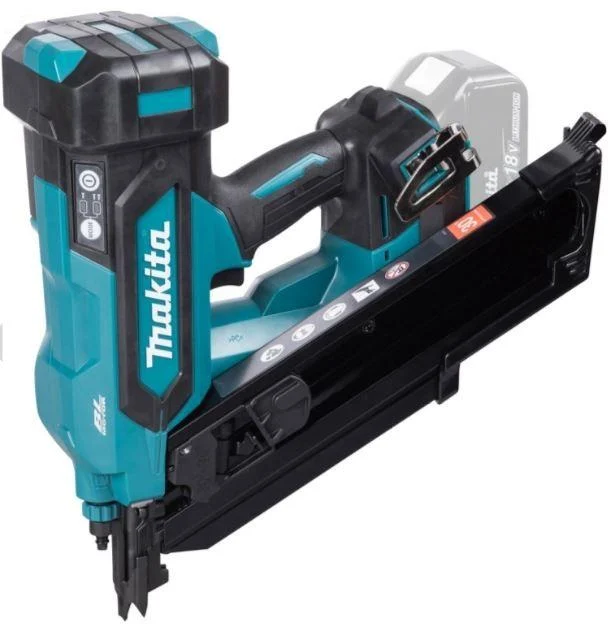

- DBN900Z Framing Nailer
- Carry Case
- Nose Adapter
- Hook
- Hex Wrench
- Bolts
